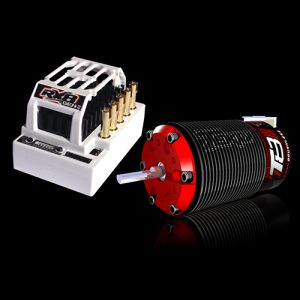

RX8 Gen2 1/8 Buggy Brushless System w/T8 1900kV Motor
RX8 Gen2 1/8 Buggy Brushless System w/T8 1900kV Motor
  (Enlarge)
 TEKTT2312 Tekin RX8 Gen2 1/8 Buggy Brushless System w/T8 1900kV Motor.

Electronic Speed Control:

 Tekin’s RX8 is big power in a small package. Based off of the proven RS series Speed Control the RX8 takes large scale current demands in stride. Leading the industry not only in power handling ability but size and features with Drag Brake, Neutral Width, Throttle Profiles, Voltage Cut-Offs for LiPos and much more. The RX8 sits at only 1.5 x 2.22 x 1.46, a small foot print making it easy to install on any chassis. Don’t negotiate the track, attack it with extreme prejudice.

 - Easily access programming, anywhere, anytime
 - Drives sensor/sensorless brushless and brushed motors
 - D2-Dual Drive Mode technology
 - On-board temperature indicator
 - PC interface for custom programming (not included)
 - HDAC-High density copper fet boards
 - Sensor plug for precise commutation with all motors
 - Solder posts for easy wire replacement
 - Self test diagnostics and factory reset
 - Adjustable drag brakes
 - Pit Tune Mode
 - DGF2-Digital Glitch Filtering V2
 - QuickTune™ programming
 - One-touch radio calibration

Motor:

 Tekin’s Redline T8 motor series is designed for large scale, high performance competition. Featuring sensors for flawless, reliable on-track operation, the T8 provides pro level control and power. Capable of both sensored and sensorless operation, the T8 series motors are the leading edge of large scale RC motor technology. Utilize the torque and speed of your T8 to propel you across the finish line.

 - CNC machined 6061 T6 billet aluminum ribbed heatsink can
 - Sensored and sensorless operation
 - High current solder tabs
 - Rebuildable design
 - Neodymium sintered magnet
 - Precision engineered for maximum energy conversion
 - Dual-plug sensor wire harness

Specifications

Weight: 11.5oz (341g)
Shaft Dimensions: 19 x 5mm w/flat
Motor Diameter: 1.57” (40mm) / 1.65” (42mm) including fin
Motor Length: 2.80” (71mm)
Forward: Yes
Reverse: Yes
Brake: Yes
Continuous Maximum Current: 210 Amps
Input Voltage: up to 6S LiPo
Motor Limit: None
Dimensions (WxLxH): 2.21 x .5 x 1.4"
Weight: 2.7oz
BEC Voltage: 6.0V/5.0A


Our Price: $315.99
